Step-by-Step Guide: Setting up AWS ALB using AWS CLI

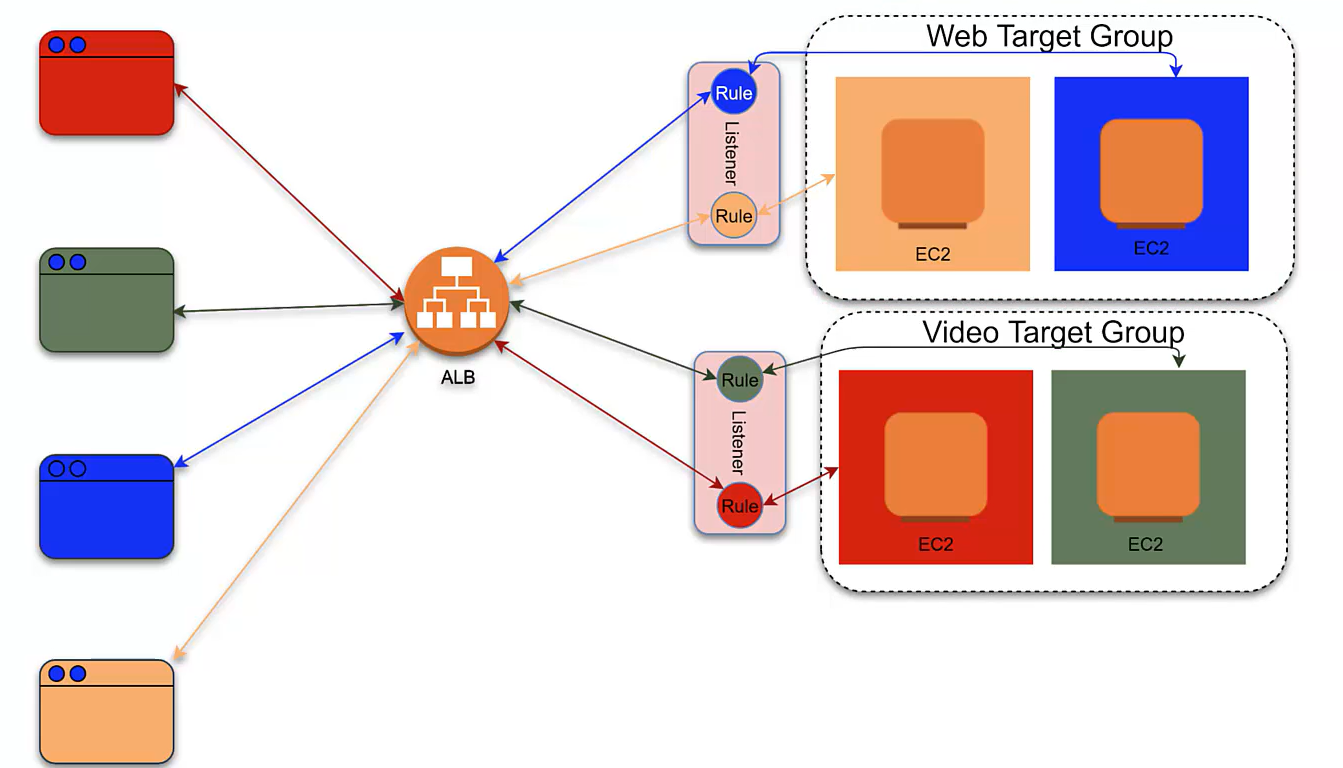

AWS ALB Setup

Prerequisite

If you don’t have one, create a default vpc

aws ec2 create-default-vpc

1	aws ec2 create-default-vpc

Get the aws cli if you don’t already have it

https://docs.aws.amazon.com/cli/latest/userguide/install-cliv2.html

Configure your aws cli

https://docs.aws.amazon.com/cli/latest/userguide/cli-configure-quickstart.html

Test to make sure you have version 2 of the aws cli installed

aws elbv2 help

1	aws elbv2 help

Get the AMI id of the free tier-eligible AMI

List your VPCs

aws ec2 describe-vpcs

1	aws ec2 describe-vpcs

Create an environment variable for your VPC

export VPC=<default_vpc_id>

1	export VPC=<default_vpc_id>

Use a key pair from your existing key pairs

MyALBKeyPair.pem

Create Resources

Create your security group

aws ec2 create-security-group --group-name MyALBSecurityGroup --description "My ALB security group"

1	aws ec2 create-security-group --group-name MyALBSecurityGroup --description "My ALB security group"

Set environment variable for your security group

export SGID=<security_group_id>

1	export SGID=<security_group_id>

Get your local IP Address

curl https://checkip.amazonaws.com

1	curl https://checkip.amazonaws.com

Set an environment variable for your IP address

export IPADD=<your_ip_address>

1	export IPADD=<your_ip_address>

Add ssh and HTTP rules to your inbound rules

aws ec2 authorize-security-group-ingress --group-id $SGID --protocol tcp --port 22 --cidr $IPADD/32<br>aws ec2 authorize-security-group-ingress --group-id $SGID --protocol tcp --port 80 --cidr 0.0.0.0/0

1	aws ec2 authorize-security-group-ingress --group-id $SGID --protocol tcp --port 22 --cidr $IPADD/32<br>aws ec2 authorize-security-group-ingress --group-id $SGID --protocol tcp --port 80 --cidr 0.0.0.0/0

Create your subnets

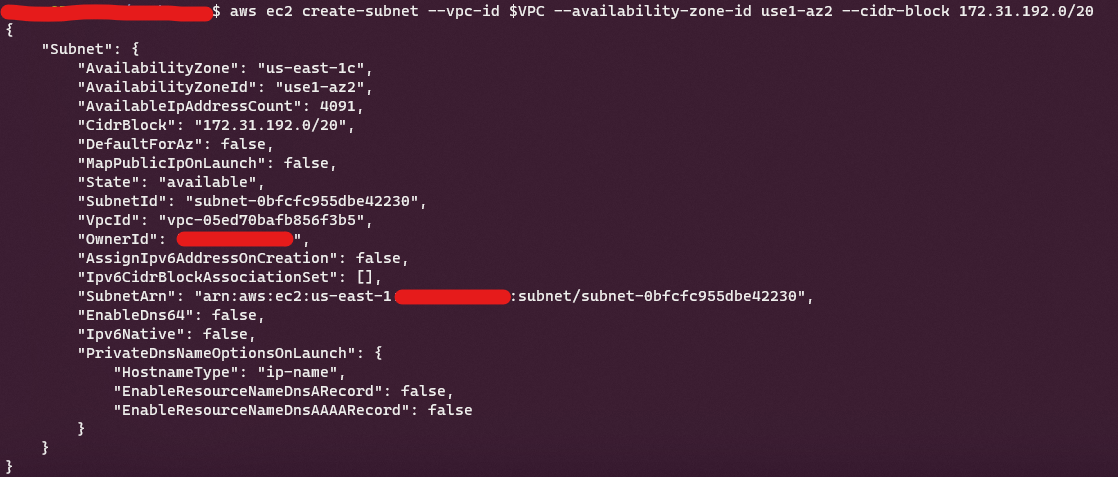

aws ec2 create-subnet --vpc-id $VPC --availability-zone-id use1-az1 --cidr-block 172.31.128.0/20<br>aws ec2 create-subnet --vpc-id $VPC --availability-zone-id use1-az2 --cidr-block 172.31.192.0/20

1	aws ec2 create-subnet --vpc-id $VPC --availability-zone-id use1-az1 --cidr-block 172.31.128.0/20<br>aws ec2 create-subnet --vpc-id $VPC --availability-zone-id use1-az2 --cidr-block 172.31.192.0/20

Create environment variables for your subnets

export AZ1SUB=<az1_subnet_id>
export AZ2SUB=s<az2_subnet_id>

1 2	export AZ1SUB=<az1_subnet_id> export AZ2SUB=s<az2_subnet_id>

Create your EC2 instances using the AMI id of ami-03c7d01cf4dedc891 (the free tier eligible AMI), two in each subnet; one for the video server and the other for the web server.

userdata-video-server-1.txt

#!/bin/bash
sudo su
yum install httpd -y
cd /var/www/html
mkdir vid
echo "<html><body><h1><span style="color:#6D8764">Hello from EC2 video server instance #1</span></h1><p>This server acts as an Apache httpd server for video content</p></body></html>" > /var/www/html/vid/index.html
echo "<html><body><h1><span style="color:#6D8764">Serving video data from EC2 application instance #1</span></h1><p>This server acts as an Apache httpd server for video content</p></body></html>" > /var/www/html/vid/video.html
service httpd start

#!/bin/bash

sudo su

yum install httpd -y

cd /var/www/html

mkdir vid

echo "<html><body><h1><span style="color:#6D8764">Hello from EC2 video server instance #1</span></h1><p>This server acts as an Apache httpd server for video content</p></body></html>" > /var/www/html/vid/index.html

echo "<html><body><h1><span style="color:#6D8764">Serving video data from EC2 application instance #1</span></h1><p>This server acts as an Apache httpd server for video content</p></body></html>" > /var/www/html/vid/video.html

service httpd start

aws ec2 run-instances --image-id ami-03c7d01cf4dedc891 \<br>--instance-type t2.micro --count 1 --subnet-id $AZ1SUB \<br>--key-name MyALBKeyPair20230426 --security-group-ids $SGID \<br>--associate-public-ip-address --user-data file://userdata-video-server-1.txt

1	aws ec2 run-instances --image-id ami-03c7d01cf4dedc891 \<br>--instance-type t2.micro --count 1 --subnet-id $AZ1SUB \<br>--key-name MyALBKeyPair20230426 --security-group-ids $SGID \<br>--associate-public-ip-address --user-data file://userdata-video-server-1.txt

userdata-video-server-2.txt

#!/bin/bash
sudo su
yum install httpd -y
cd /var/www/html
mkdir vid
echo "<html><body><h1><span style="color:#E51400">Hello from EC2 video server instance #2</span></h1><p>This server acts as an Apache httpd server for video content</p></body></html>" > /var/www/html/vid/index.html
echo "<html><body><h1><span style="color:#E51400">Serving application data from EC2 application instance #2</span></h1><p>This server acts as an Apache httpd server for video content</p></body></html>" > /var/www/html/vid/video.html
service httpd start

#!/bin/bash

sudo su

yum install httpd -y

cd /var/www/html

mkdir vid

echo "<html><body><h1><span style="color:#E51400">Hello from EC2 video server instance #2</span></h1><p>This server acts as an Apache httpd server for video content</p></body></html>" > /var/www/html/vid/index.html

echo "<html><body><h1><span style="color:#E51400">Serving application data from EC2 application instance #2</span></h1><p>This server acts as an Apache httpd server for video content</p></body></html>" > /var/www/html/vid/video.html

service httpd start

aws ec2 run-instances --image-id ami-03c7d01cf4dedc891 \<br>--instance-type t2.micro --count 1 --subnet-id $AZ2SUB \<br>--key-name MyALBKeyPair20230426 --security-group-ids $SGID \<br>--associate-public-ip-address --user-data file://userdata-video-server-2.txt

1	aws ec2 run-instances --image-id ami-03c7d01cf4dedc891 \<br>--instance-type t2.micro --count 1 --subnet-id $AZ2SUB \<br>--key-name MyALBKeyPair20230426 --security-group-ids $SGID \<br>--associate-public-ip-address --user-data file://userdata-video-server-2.txt

userdata-web-server-1.txt

#!/bin/bash
sudo su
yum install httpd -y
echo "<html><body><h1><span style="color:#FFB570">Hello from EC2 web instance #1</span></h1><p>This server acts as an Apache nginx server</p></body></html>" > /var/www/html/index.html
echo "<html><body><h1><span style="color:#FFB570">Serving web interactions from EC2 web instance #1</span></h1><p>This server acts as an Apache nginx server</p></body></html>" > /var/www/html/application.html
service httpd start

#!/bin/bash

sudo su

yum install httpd -y

echo "<html><body><h1><span style="color:#FFB570">Hello from EC2 web instance #1</span></h1><p>This server acts as an Apache nginx server</p></body></html>" > /var/www/html/index.html

echo "<html><body><h1><span style="color:#FFB570">Serving web interactions from EC2 web instance #1</span></h1><p>This server acts as an Apache nginx server</p></body></html>" > /var/www/html/application.html

service httpd start

aws ec2 run-instances --image-id ami-03c7d01cf4dedc891 \<br>--instance-type t2.micro --count 1 --subnet-id $AZ1SUB \<br>--key-name MyALBKeyPair20230426 --security-group-ids $SGID \<br>--associate-public-ip-address --user-data file://userdata-web-server-1.txt

1	aws ec2 run-instances --image-id ami-03c7d01cf4dedc891 \<br>--instance-type t2.micro --count 1 --subnet-id $AZ1SUB \<br>--key-name MyALBKeyPair20230426 --security-group-ids $SGID \<br>--associate-public-ip-address --user-data file://userdata-web-server-1.txt

userdata-web-server-2.txt

!/bin/bash

sudo su
yum install httpd -y
echo “

Hello from EC2 web instance #2

This server acts as an Apache nginx server” > /var/www/html/index.html
echo “

Serving web interactions from EC2 web instance #2

#!/bin/bash
sudo su
yum install httpd -y
echo "<html><body><h1><span style="color:#3333FF">Hello from EC2 web instance #2</span></h1><p>This server acts as an Apache nginx server</p></body></html>" > /var/www/html/index.html
echo "<html><body><h1><span style="color:#3333FF">Serving web interactions from EC2 web instance #2</span></h1><p>This server acts as an Apache nginx server</p></body></html>" > /var/www/html/application.html
service httpd start

#!/bin/bash

sudo su

yum install httpd -y

echo "<html><body><h1><span style="color:#3333FF">Hello from EC2 web instance #2</span></h1><p>This server acts as an Apache nginx server</p></body></html>" > /var/www/html/index.html

echo "<html><body><h1><span style="color:#3333FF">Serving web interactions from EC2 web instance #2</span></h1><p>This server acts as an Apache nginx server</p></body></html>" > /var/www/html/application.html

service httpd start

aws ec2 run-instances --image-id ami-03c7d01cf4dedc891 \<br>--instance-type t2.micro --count 1 --subnet-id $AZ2SUB \<br>--key-name MyALBKeyPair20230426 --security-group-ids $SGID \<br>--associate-public-ip-address --user-data file://userdata-web-server-2.txt

1	aws ec2 run-instances --image-id ami-03c7d01cf4dedc891 \<br>--instance-type t2.micro --count 1 --subnet-id $AZ2SUB \<br>--key-name MyALBKeyPair20230426 --security-group-ids $SGID \<br>--associate-public-ip-address --user-data file://userdata-web-server-2.txt

Create environment variables for your EC2 instances

export VIDSERV1=<video_server_instance_id_1>
export VIDSERV2=<video_server_instance_id_2>
export WEBSERV1=<web_server_instance_id_1>
export WEBSERV2=<web_server_instance_id_2>

export VIDSERV1=<video_server_instance_id_1>

export VIDSERV2=<video_server_instance_id_2>

export WEBSERV1=<web_server_instance_id_1>

export WEBSERV2=<web_server_instance_id_2>

Tag your instances with names

aws ec2 create-tags --resources $VIDSERV1 --tags Key="Name",Value="Video Server #1"<br>aws ec2 create-tags --resources $VIDSERV2 --tags Key="Name",Value="Video Server #2"<br>aws ec2 create-tags --resources $WEBSERV1 --tags Key="Name",Value="Web Server #1"<br>aws ec2 create-tags --resources $WEBSERV2 --tags Key="Name",Value="Web Server #2"

aws ec2 create-tags --resources $VIDSERV1 --tags Key="Name",Value="Video Server #1"<br>aws ec2 create-tags --resources $VIDSERV2 --tags Key="Name",Value="Video Server #2"<br>aws ec2 create-tags --resources $WEBSERV1 --tags Key="Name",Value="Web Server #1"<br>aws ec2 create-tags --resources $WEBSERV2 --tags Key="Name",Value="Web Server #2"

Create your Video Load Balancer

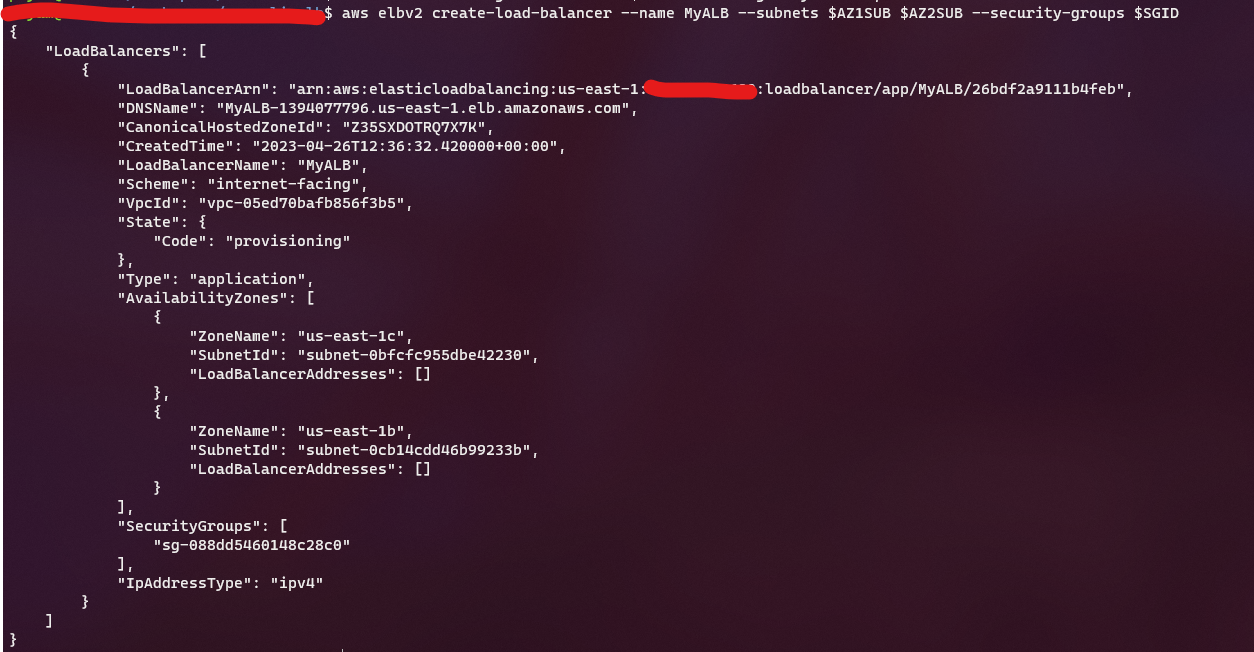

aws elbv2 create-load-balancer --name MyALB --subnets $AZ1SUB $AZ2SUB --security-groups $SGID

1	aws elbv2 create-load-balancer --name MyALB --subnets $AZ1SUB $AZ2SUB --security-groups $SGID

Create environment variables for your ALB ARN and DNS name

export ALBARN=arn:aws:elasticloadbalancing:us-east-1:############:loadbalancer/app/MyALB/a6f121e8d8e04021<br>export ALBDNS=MyALB-949638453.us-east-1.elb.amazonaws.com

1	export ALBARN=arn:aws:elasticloadbalancing:us-east-1:############:loadbalancer/app/MyALB/a6f121e8d8e04021<br>export ALBDNS=MyALB-949638453.us-east-1.elb.amazonaws.com

Create your Target Groups

aws elbv2 create-target-group --name VideoTargets --protocol HTTP --port 80 --vpc-id $VPC<br>aws elbv2 create-target-group --name WebTargets --protocol HTTP --port 80 --vpc-id $VPC

1	aws elbv2 create-target-group --name VideoTargets --protocol HTTP --port 80 --vpc-id $VPC<br>aws elbv2 create-target-group --name WebTargets --protocol HTTP --port 80 --vpc-id $VPC

Create environment variables for your target group ARNs

export VIDTGARN=arn:aws:elasticloadbalancing:us-east-1:############:targetgroup/VideoTargets/ecf67383b371d68e<br>export WEBTGARN=arn:aws:elasticloadbalancing:us-east-1:############:targetgroup/WebTargets/c62e5325012e7d51

1	export VIDTGARN=arn:aws:elasticloadbalancing:us-east-1:############:targetgroup/VideoTargets/ecf67383b371d68e<br>export WEBTGARN=arn:aws:elasticloadbalancing:us-east-1:############:targetgroup/WebTargets/c62e5325012e7d51

Register your EC2 instances with your Target Groups

aws elbv2 register-targets --target-group-arn $VIDTGARN --targets Id=$VIDSERV1 Id=$VIDSERV2<br>aws elbv2 register-targets --target-group-arn $WEBTGARN --targets Id=$WEBSERV1 Id=$WEBSERV2

1	aws elbv2 register-targets --target-group-arn $VIDTGARN --targets Id=$VIDSERV1 Id=$VIDSERV2<br>aws elbv2 register-targets --target-group-arn $WEBTGARN --targets Id=$WEBSERV1 Id=$WEBSERV2

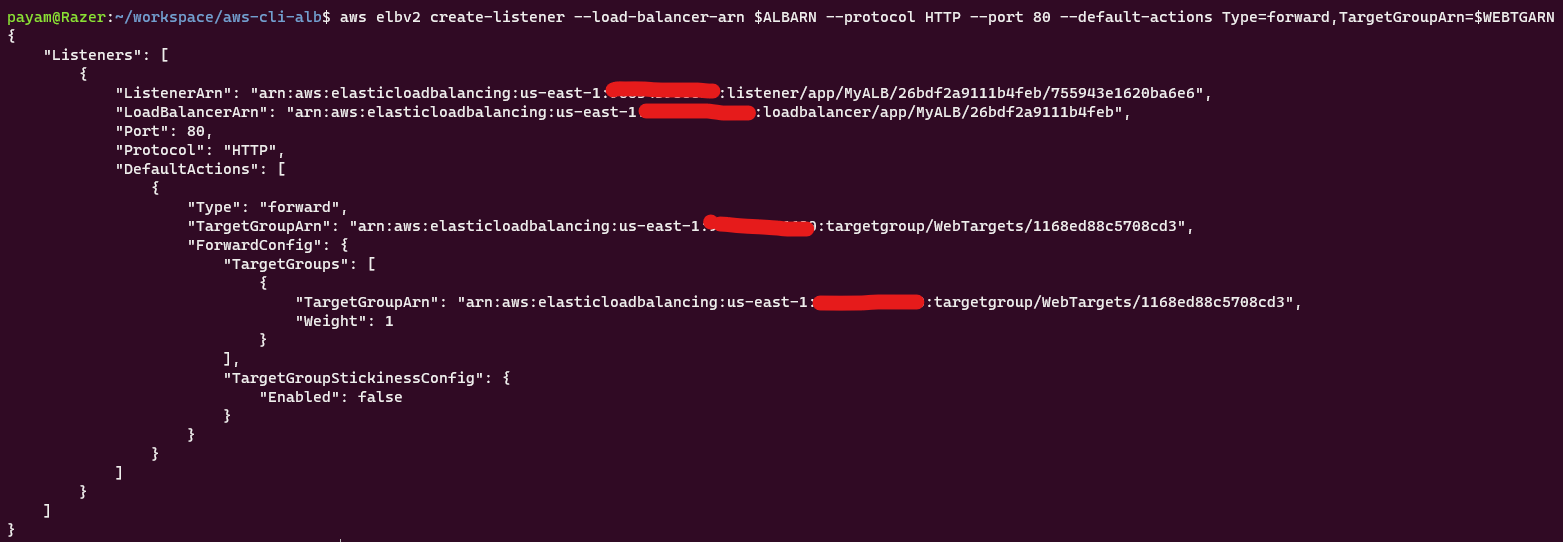

Create a listener for your ALB and give it a default Target Group of the web target group

aws elbv2 create-listener --load-balancer-arn $ALBARN --protocol HTTP \<br>--port 80 --default-actions Type=forward,TargetGroupArn=$WEBTGARN

1	aws elbv2 create-listener --load-balancer-arn $ALBARN --protocol HTTP \<br>--port 80 --default-actions Type=forward,TargetGroupArn=$WEBTGARN

Create an environment variable for your listener ARN

export LISTARN=arn:aws:elasticloadbalancing:us-east-1:############:listener/app/MyALB/a6f121e8d8e04021/b233b9957d512d9a

1	export LISTARN=arn:aws:elasticloadbalancing:us-east-1:############:listener/app/MyALB/a6f121e8d8e04021/b233b9957d512d9a

Verify the health of your targets in each Target Group

aws elbv2 describe-target-health --target-group-arn $VIDTGARN<br>aws elbv2 describe-target-health --target-group-arn $WEBTGARN

1	aws elbv2 describe-target-health --target-group-arn $VIDTGARN<br>aws elbv2 describe-target-health --target-group-arn $WEBTGARN

Add path-based routing

conditions-pattern.json

[
    {
        "Field": "path-pattern",
        "PathPatternConfig": {
            "Values": ["/vid/*"]
        }
    }
]

[

{

"Field": "path-pattern",

"PathPatternConfig": {

"Values": ["/vid/*"]

}

]

aws elbv2 create-rule \<br>--listener-arn $LISTARN \<br>--priority 5 \<br>--conditions file://conditions-pattern.json \<br>--actions Type=forward,TargetGroupArn=$VIDTGARN

1	aws elbv2 create-rule \<br>--listener-arn $LISTARN \<br>--priority 5 \<br>--conditions file://conditions-pattern.json \<br>--actions Type=forward,TargetGroupArn=$VIDTGARN

Get your listener arns

aws elbv2 describe-rules --listener-arn $LISTARN

1	aws elbv2 describe-rules --listener-arn $LISTARN

Create environment variables for your rule ARNs

export VIDRULEARN=arn:aws:elasticloadbalancing:us-east-1:############:listener-rule/app/MyALB/a6f121e8d8e04021/b233b9957d512d9a/5ac15ce0c4755a35<br>export WEBRULEARN=arn:aws:elasticloadbalancing:us-east-1:############:listener-rule/app/MyALB/a6f121e8d8e04021/b233b9957d512d9a/d40b830a3ddef854

1	export VIDRULEARN=arn:aws:elasticloadbalancing:us-east-1:############:listener-rule/app/MyALB/a6f121e8d8e04021/b233b9957d512d9a/5ac15ce0c4755a35<br>export WEBRULEARN=arn:aws:elasticloadbalancing:us-east-1:############:listener-rule/app/MyALB/a6f121e8d8e04021/b233b9957d512d9a/d40b830a3ddef854

Test your setup

http:&#47;&#47;myalb-1394077796.us-east-1.elb.amazonaws.com/

1	http://myalb-1394077796.us-east-1.elb.amazonaws.com/

http://myalb-1394077796.us-east-1.elb.amazonaws.com/vid/

Delete Resources

Delete your listener rules

aws elbv2 delete-rule --rule-arn $VIDRULEARN<br>aws elbv2 delete-rule --rule-arn $WEBRULEARN

1	aws elbv2 delete-rule --rule-arn $VIDRULEARN<br>aws elbv2 delete-rule --rule-arn $WEBRULEARN

Delete your listener

aws elbv2 delete-listener --listener-arn $LISTARN

1	aws elbv2 delete-listener --listener-arn $LISTARN

Delete your Target Groups

aws elbv2 delete-target-group --target-group-arn $VIDTGARN<br>aws elbv2 delete-target-group --target-group-arn $WEBTGARN

1	aws elbv2 delete-target-group --target-group-arn $VIDTGARN<br>aws elbv2 delete-target-group --target-group-arn $WEBTGARN

Delete your ALB

aws elbv2 delete-load-balancer --load-balancer-arn $ALBARN

1	aws elbv2 delete-load-balancer --load-balancer-arn $ALBARN

Terminate your EC2 instances

aws ec2 terminate-instances --instance-ids $VIDSERV1 $VIDSERV2 $WEBSERV1 $WEBSERV2

1	aws ec2 terminate-instances --instance-ids $VIDSERV1 $VIDSERV2 $WEBSERV1 $WEBSERV2

Delete your subnets

aws ec2 delete-subnet --subnet-id $AZ1SUB<br>aws ec2 delete-subnet --subnet-id $AZ2SUB

1	aws ec2 delete-subnet --subnet-id $AZ1SUB<br>aws ec2 delete-subnet --subnet-id $AZ2SUB

Delete your security group

aws ec2 delete-security-group --group-id $SGID

1	aws ec2 delete-security-group --group-id $SGID
